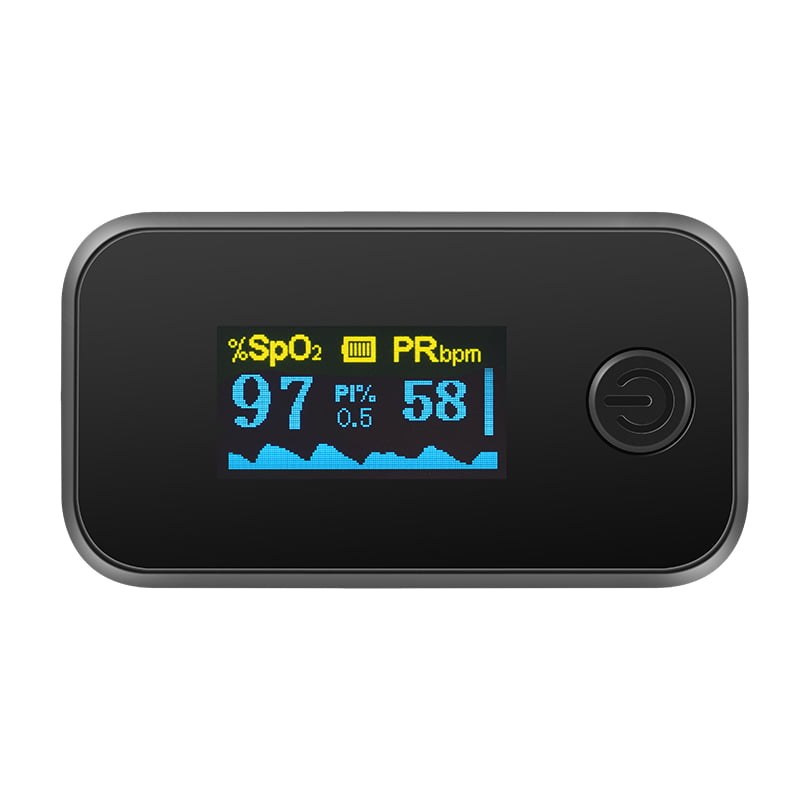

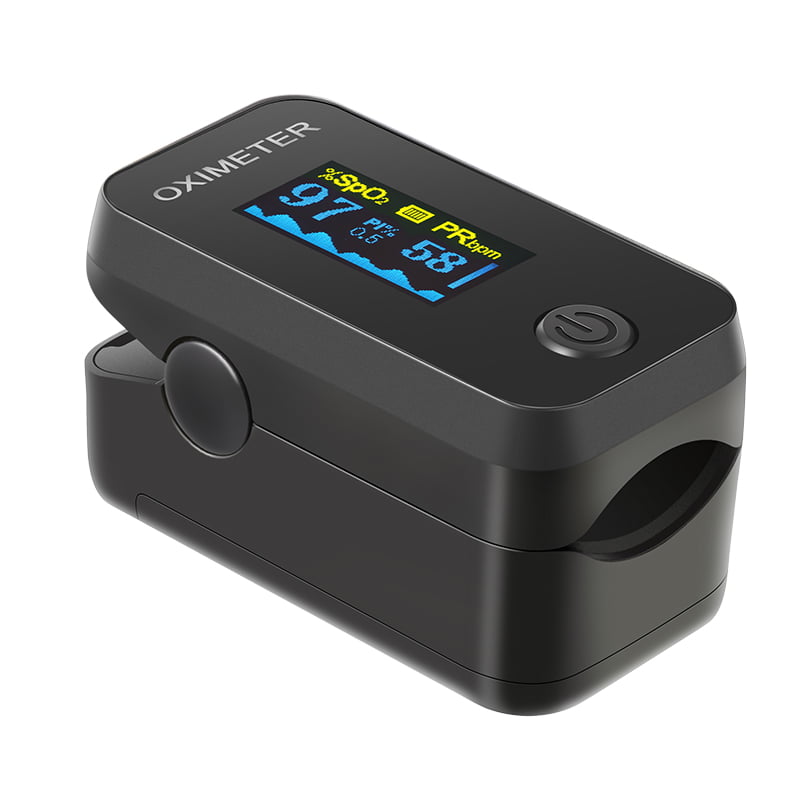

Pulse Oximeter
Model: BLS-1100
Measures oxygen level and pulse rate.
-
- Portable
- Lightweight
- Convenient
Features:
- Accurately measure SpO2 and PR in seconds.
- SpO2 and PR display, PR bar graph display.
- Sound alert function.
- Low battery indicator.
- Auto power off.
How to use
Please read enclosed leaflet carefully before use.

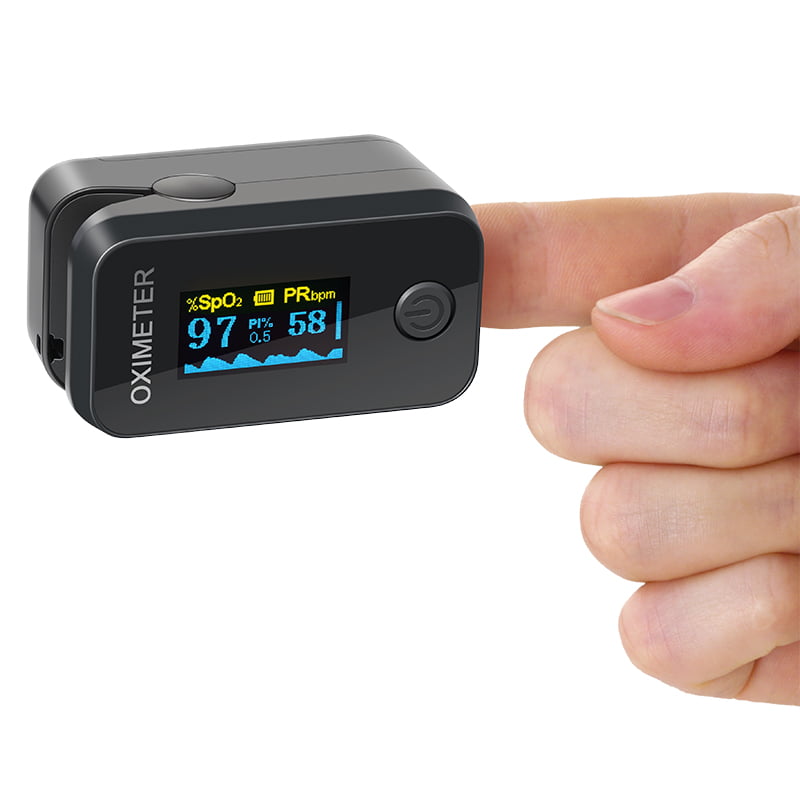

1. Put finger into the rubber cushions of the clip (make sure the finger is in the right position), and then clip the finger.
2. Press the switch button once on front panel.
3. Do not shake the finger.
4. Get the information directly from screen display.
5. In boot-strap state, press button, and the device is reset.
Hazards and Cautions
Keep out of sight and reach of children.
This device is not for medical use.
Important info
Technical Specifications:
Display Type: OLED display
SpO2:
Measurement range: 35-100%, Resolution: 1%
Accuracy: 70%-100%, +2%;35%-69% no definition
Pulse Rate:
Measurement range: 25-250bpm, Resolution: 1bpm
Accuracy: +2bpm
Pulse intensity: bar graph indicator
Power Requirements:
Two AAA alkaline batteries
Environment Requirements:
Operation temperature: 5~40°C
Storage temperature: -10~50°C
Ambient humidity: 15-80%, no condensation in operation. 10%-93%, no condensation in storage.
